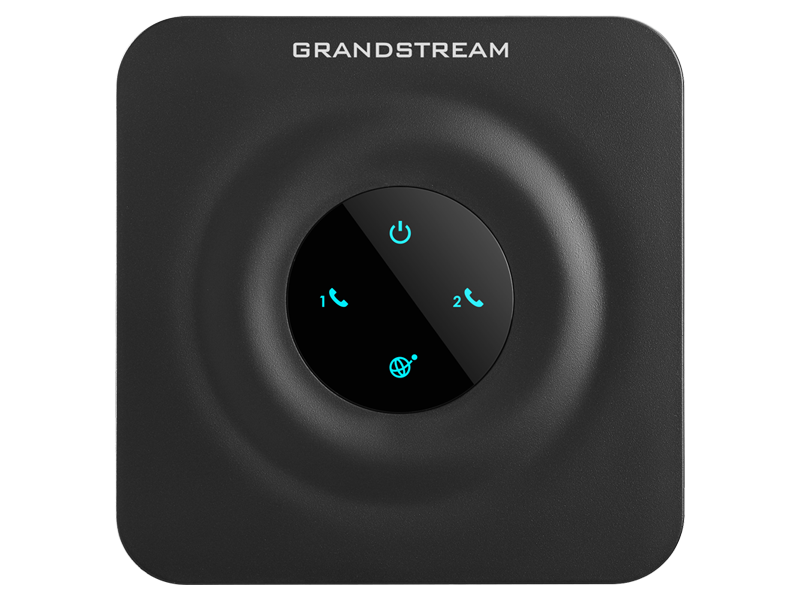

Grandstream’s HT series of Analog Telephone Adapters (ATAs) offers a ton of features at an affordable price point. They are trusted and deployed by some of the world's largest service providers. The HT802 is a 2-port FXS, with 10/100 Mbps ethernet and no router. It supports up to 2 SIP accounts.
Related Links:
NOTE: Although this unit is certified, we recommend Grandstream's HT812 for new installations. These units are from the same generation, but the HT812 allows you fully utilize its two FXS ports to attach two fax machine to a single T38Fax trunk. Only one fax machine per trunk is supported on the HT802.
Firmware

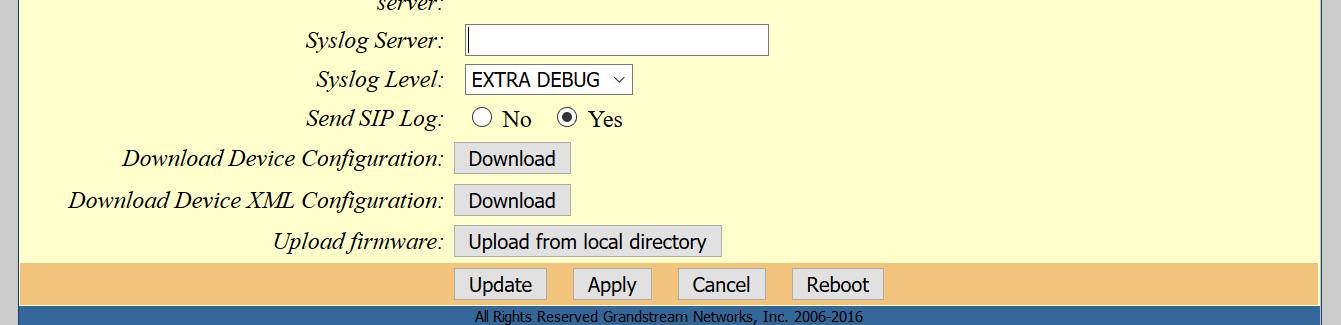

Update to the latest firmware for your HandyTone before connecting to our service. You can download the current production release from the link above. Once downloaded, you'll navigate to "Advanced Settings" and click the "Upload from Local Directory" button. Select the file you downloaded from Grandstream's website, and then click "Apply" once this has completed your device will reboot. You can then move on to the steps below.
SIP Registration
Select "FXS Port 1" from the primary menu, and and configure the following options for your SIP Registration:
- Primary SIP Server: sip.t38fax.com:5080 ⓘ
- NAT Traversal: Keep-Alive
- SIP User ID: SIP Username ⓘ
- Authenticate Password: SIP Password (will be blanked out when saved) ⓘ
Network Settings
Scroll down and configure the following options:

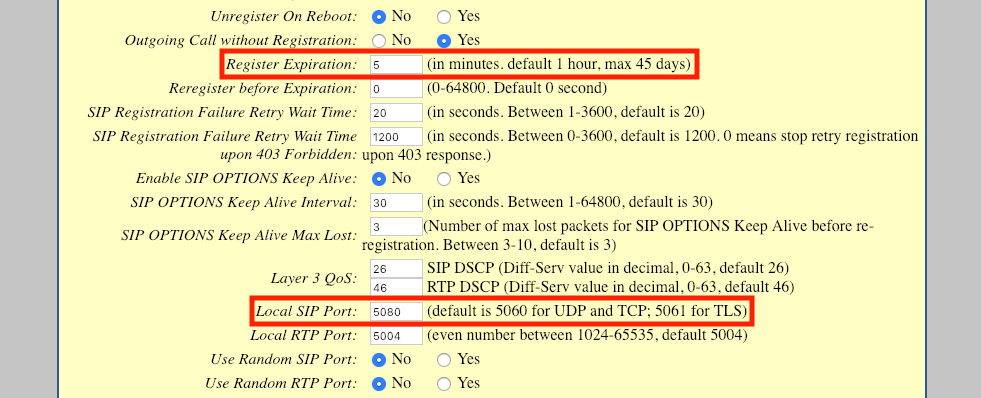

- Register Expiration: 5
- Local SIP Port: 5080 ⓘ - If you have more than one device at a site, each device at a site should have a unique port, such as 5081, 5082, etc...

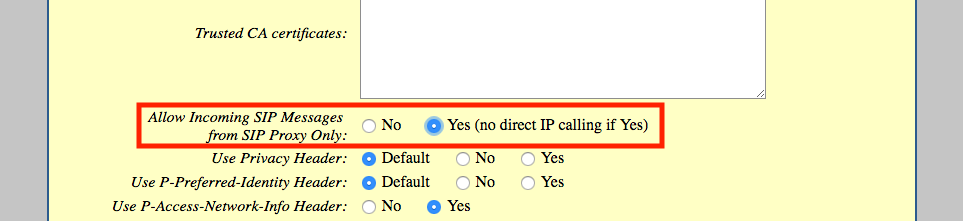

- Allow Incoming Packets from SIP Proxy Only: Yes

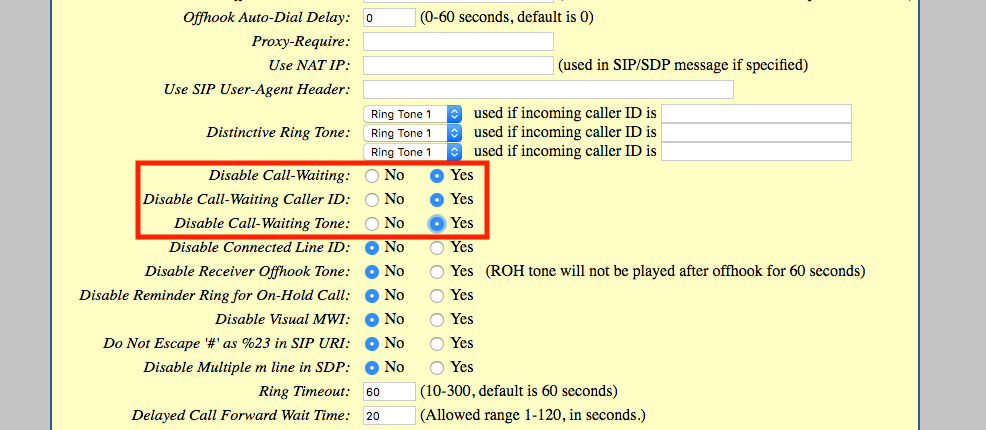

Feature Settings
Scroll down and configure the following options:
- Disable-Call-Waiting: Yes
- Disable-Call-Waiting-Caller-ID: Yes
- Disable-Call-Waiting-Tone: Yes

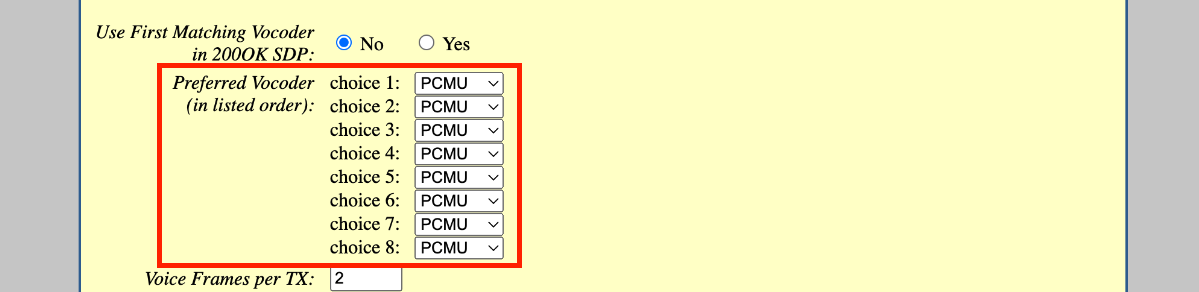

Codecs
Disable unnecessary codecs. We recommend this to reduce packet size and reduce the chance of reaching the maximum transmission unit.
- Set all Preferred Vocoder choices to: PCMU

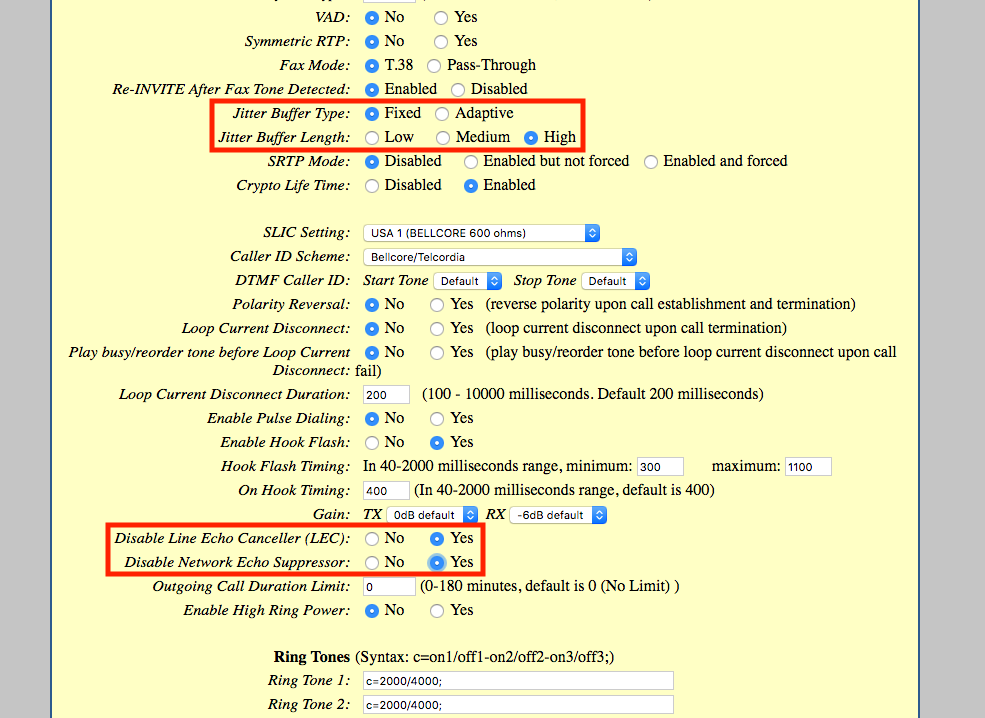

Fax Settings
Finally, configure the following T.38 specific options further down the screen:
- Jitter Buffer Type: Fixed
- Jitter Buffer Length: High
- Disable Line Echo Canceller (LEC): Yes
- Disable Network Echo Suppressor: Yes
Fax Machine
Finally, configure your fax machine to work properly with your Power-T.38 SIP Trunk. Review our Recommended Fax Machine Settings for details.
