Requirements: FusionPBX Version 4.2.1 or greater.

1. Sign up for a Free Trial account here: Free Trial Signup

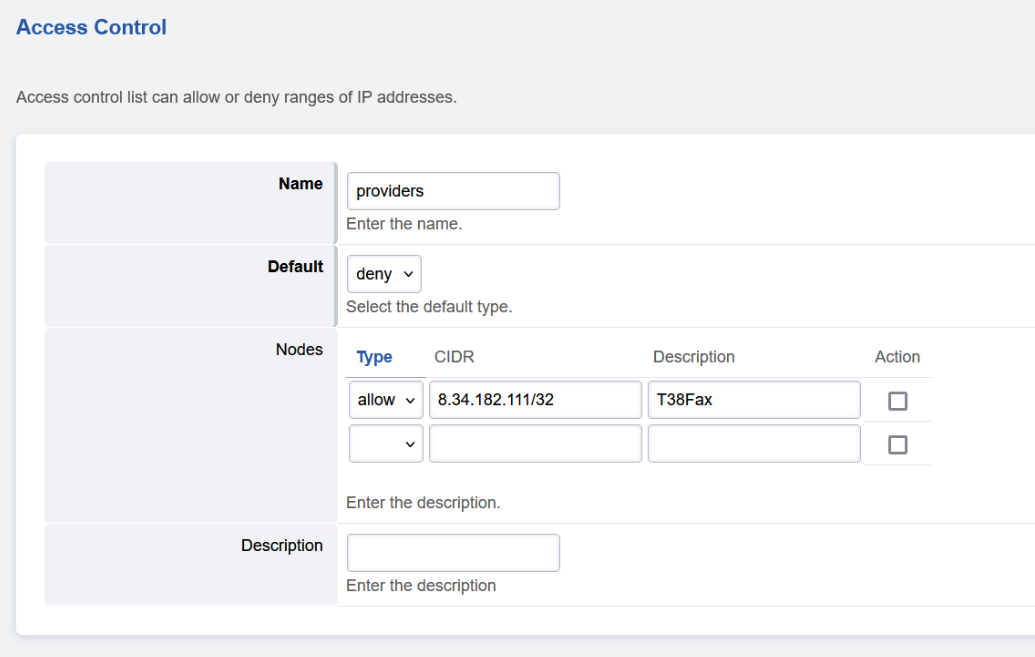

2. Create a new Gateway to connect your T38Fax.com SIP Trunk to FusionPBX. To create a new Gateway, use the top menu to navigate to: "Accounts -> Gateways" and then click a "+" to create a new Gateway.

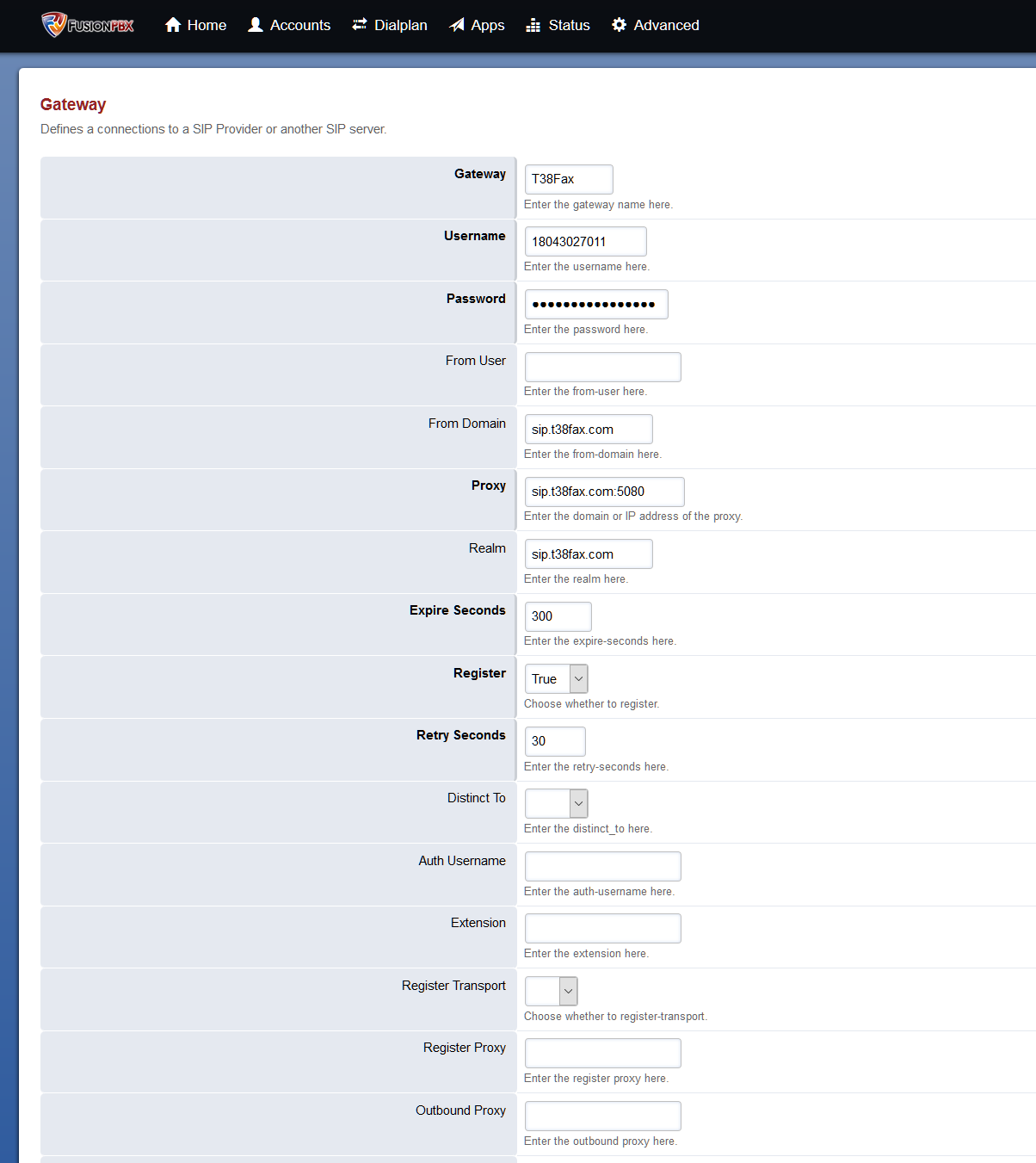

   Configure the following settings when creating a new Gateway to connect to your T38Fax.com SIP Trunk:

   Configuration Option	Required Value
   Gateway:	T38Fax
   Username:	SIP_USERNAME ⓘ
   Password:	SIP_PASSWORD ⓘ
   From Domain:	sip.t38fax.com
   Proxy:	sip.t38fax.com:5080 ⓘ
   Realm:	sip.t38fax.com
   Expire Seconds:	300

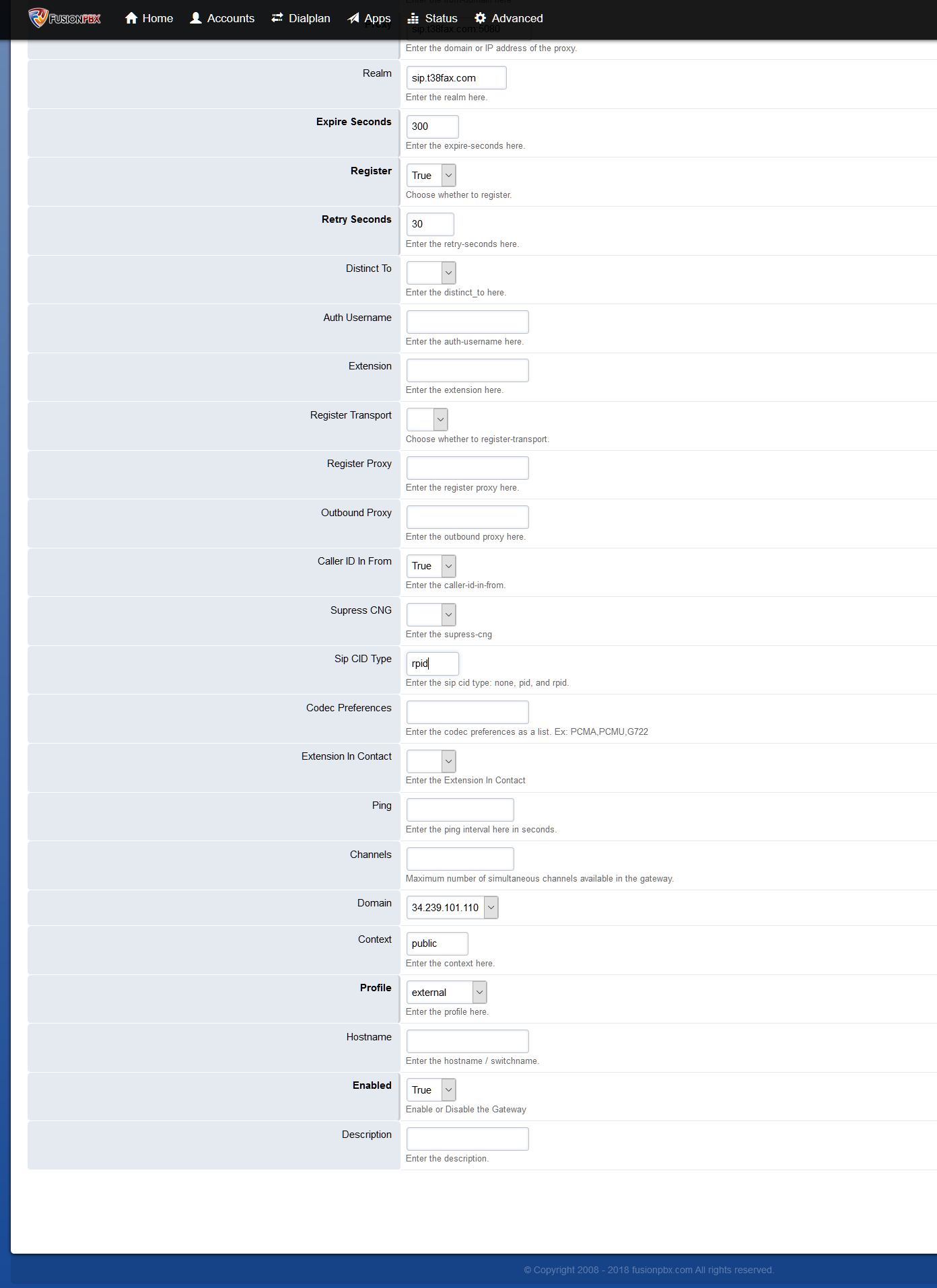

   The following options are found after clicking the "Advanced" button under the trunk creation screen.

   Configuration Option	Required Value
   Caller ID in From:	True
   SIP CID Type:	rpid



• 1. Create an extension to connect your ATA to your FusionPBX system. Minimal configuration is fine, take note of the Extension and Password fields, as you'll need them to register your ATA to your FusionPBX. If available, be sure to configure your ATA according to the appropriate guide for its make and model. You can find a list of all of our configuration guides here: Full List of Configuration Articles

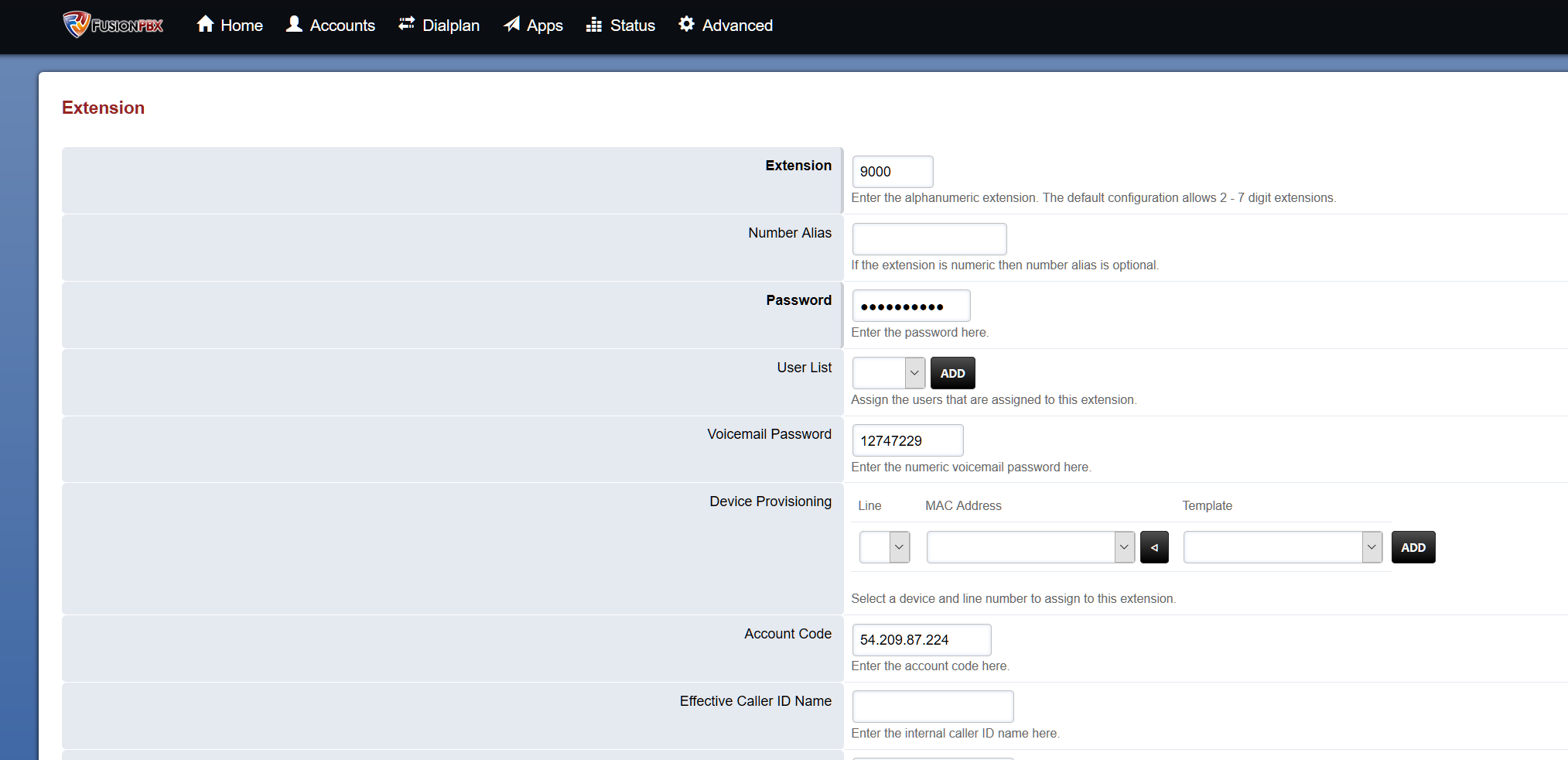

     You can create an extension by going to "Accounts -> Extensions" and clicking the "+". Enter an extension number in the "Extension" box and hit "Save". The "Password" box will appear, including an automatically generated password. Using these credentials, register your ATA to FusionPBX:

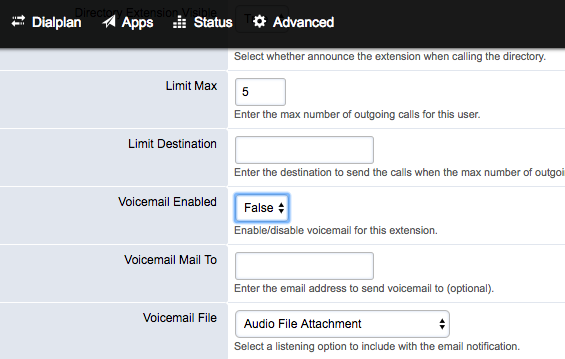

     Additionally, set Voicemail Enable to False on this screen:

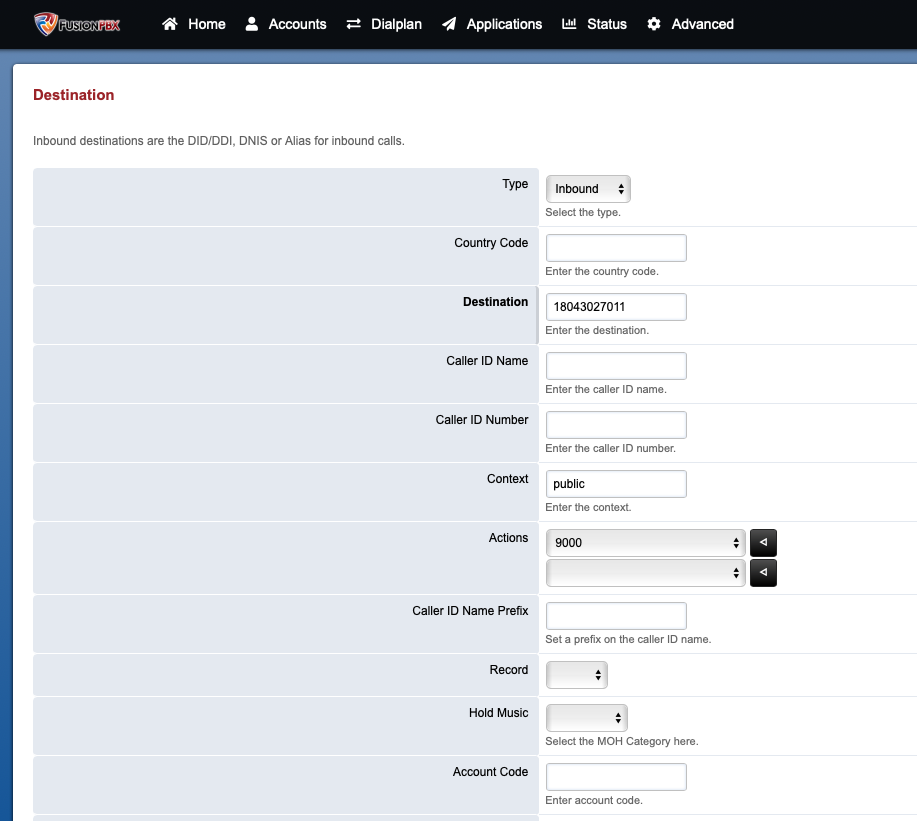

  2. Create a new "Destination" to automatically create an inbound route to your new extension. Navigate to: "Dialplan -> Destinations" and click a "+" symbol to create a new Destination (and inbound route).

     Configure the following settings when creating a new Destination:

     Configuration Option	Required Value
     Type:	Inbound
     Destination:	SIP_USERNAME/DID
     Action:	Set this to the extension you created above.

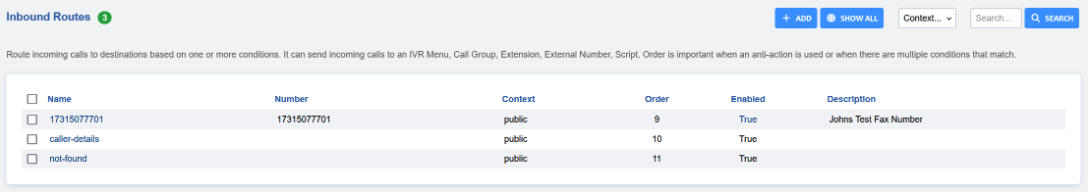

  3. Now we will need to add a few parameters to the Inbound Route to ensure that T.38 is accepted on all legs of the call. For each inbound route you've created, you'll need to add these parameters to ensure that it will function properly. Navigate to "Dialplan -> Inbound Routes" and select the Inbound route that was automatically created during step 4. You will need to adjust the "Order" field of the "Transfer" action to ensure that it is the last line in the dialplan. Add the following parameters to the dialplan, be sure to review the screenshot for more detail:

     Tag	Type	Data
     Action	Export	fax_enable_t38=true
     Action	Export	fax_enable_t38_request=true
     Action	Export	t38_passthru=true
     Action	Export	fax_use_ecm=true
     Action	Export	absolute_codec_string=PCMU

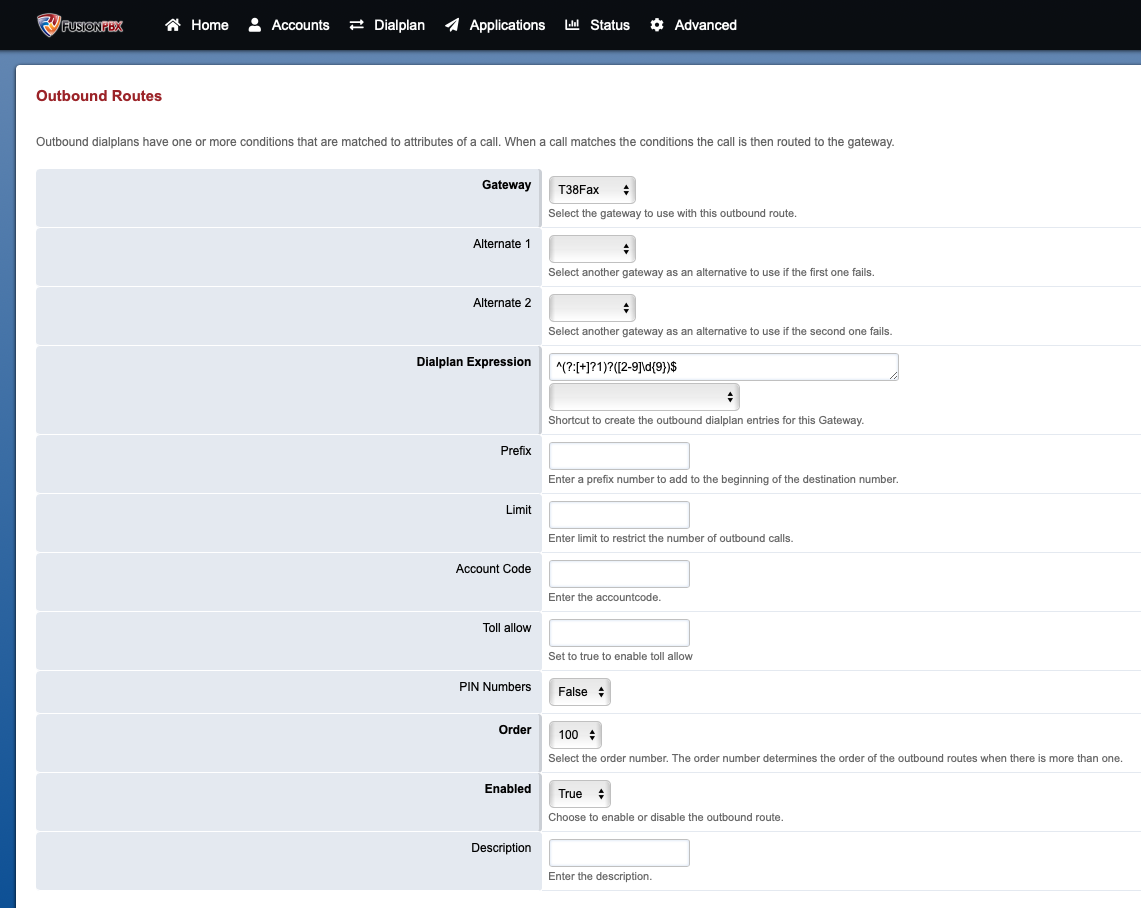

  4. Next, we'll configure our "Outbound Routes" so that you can send calls out via your T38Fax.com trunk. Using the top menu, navigate to "Dialplan -> Outbound Routes" and click a "+" symbol to create a new Outbound Route.

     Configure the following settings when creating your Outbound Routes:

     Configuration Option	Required Value
     Gateway:	Select "T38Fax"
     Dialplan Expression:	^(?:[+]?1)?([2-9]\d{9})$

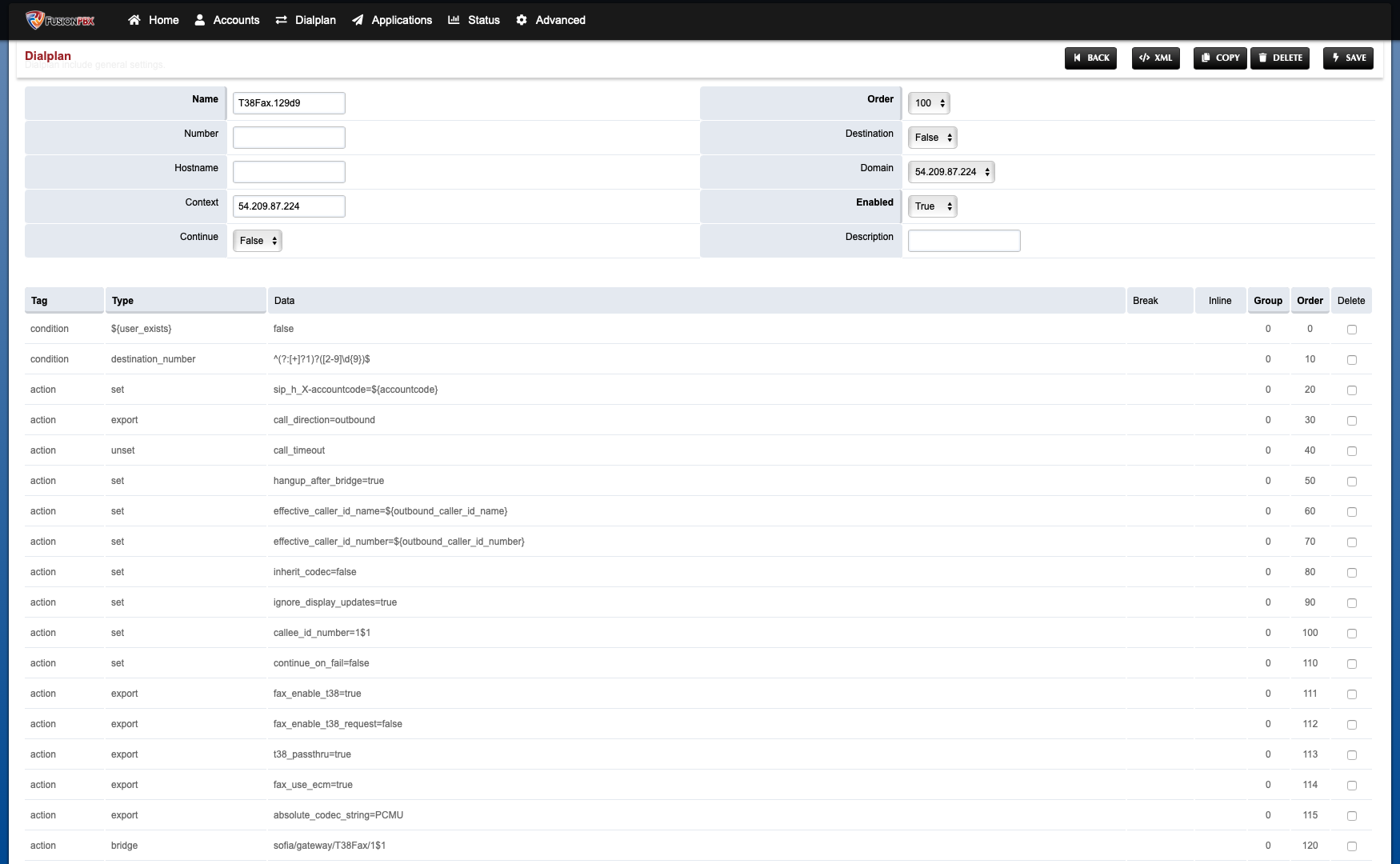

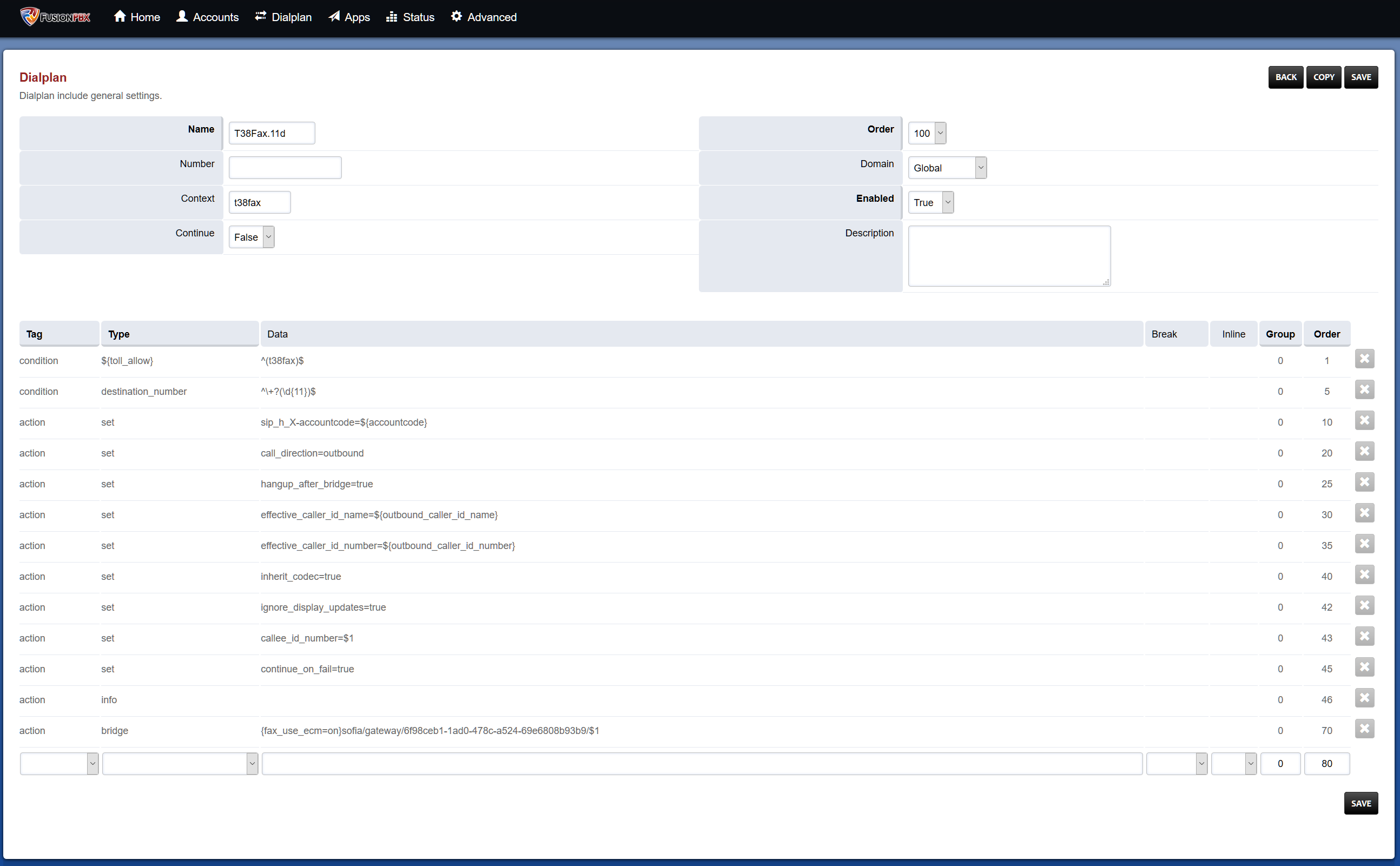

  5. As with inbound routing, we will need to add a few T.38-specific parameters to the Outbound Route. Navigate to "Dialplan -> Outbound Routes" and select the outbound route from step 6. As before, the Order field is important to note. Change the parameters from the first table (changes bolded), and add the parameters from the second:

     Change Parameters

     Tag	Type	Data
     Action	Set	inherit_codec=false
     Action	Set	callee_id_number=1$1
     Action	Set	continue_on_fail=false
     Action	Bridge	sofia/gateway/T38Fax/1$1

     Add Parameters

     Tag	Type	Data
     Action	Export	fax_enable_t38=true
     Action	Export	fax_enable_t38_request=false
     Action	Export	t38_passthru=true
     Action	Export	fax_use_ecm=true
     Action	Export	absolute_codec_string=PCMU



     At this time, you should be able to successfully send a fax using T.38 pass-thru to your ATA. Feel free to test by sending a single page fax to: 215-825-8792, and the system will fax your transmission back to you once it's successfully received it.

• 1. Create the Fax Server. Navigate to "Apps -> Fax Server" and click a "+" symbol to create a new Fax Server.

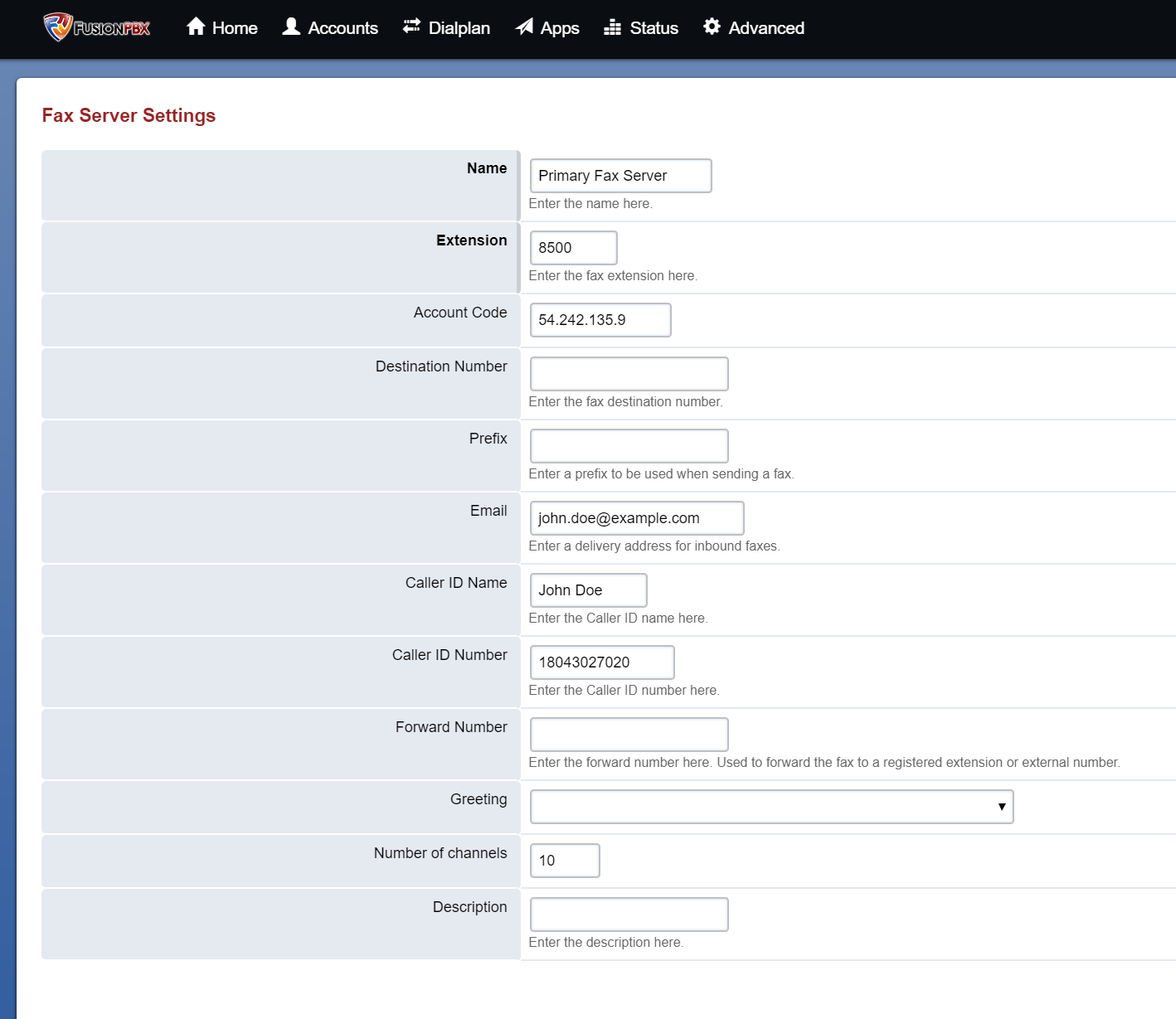

     Configure the following settings when creating a new Fax Server Application:

     Configuration Option	Required Value
     Name:	Unique Fax Server Name
     Extension:	Desired Extension Number
     Caller ID Name:	Desired Caller ID Name
     Caller ID Number:	Desired Caller ID Number
     Email Address:	john.doe@example.com

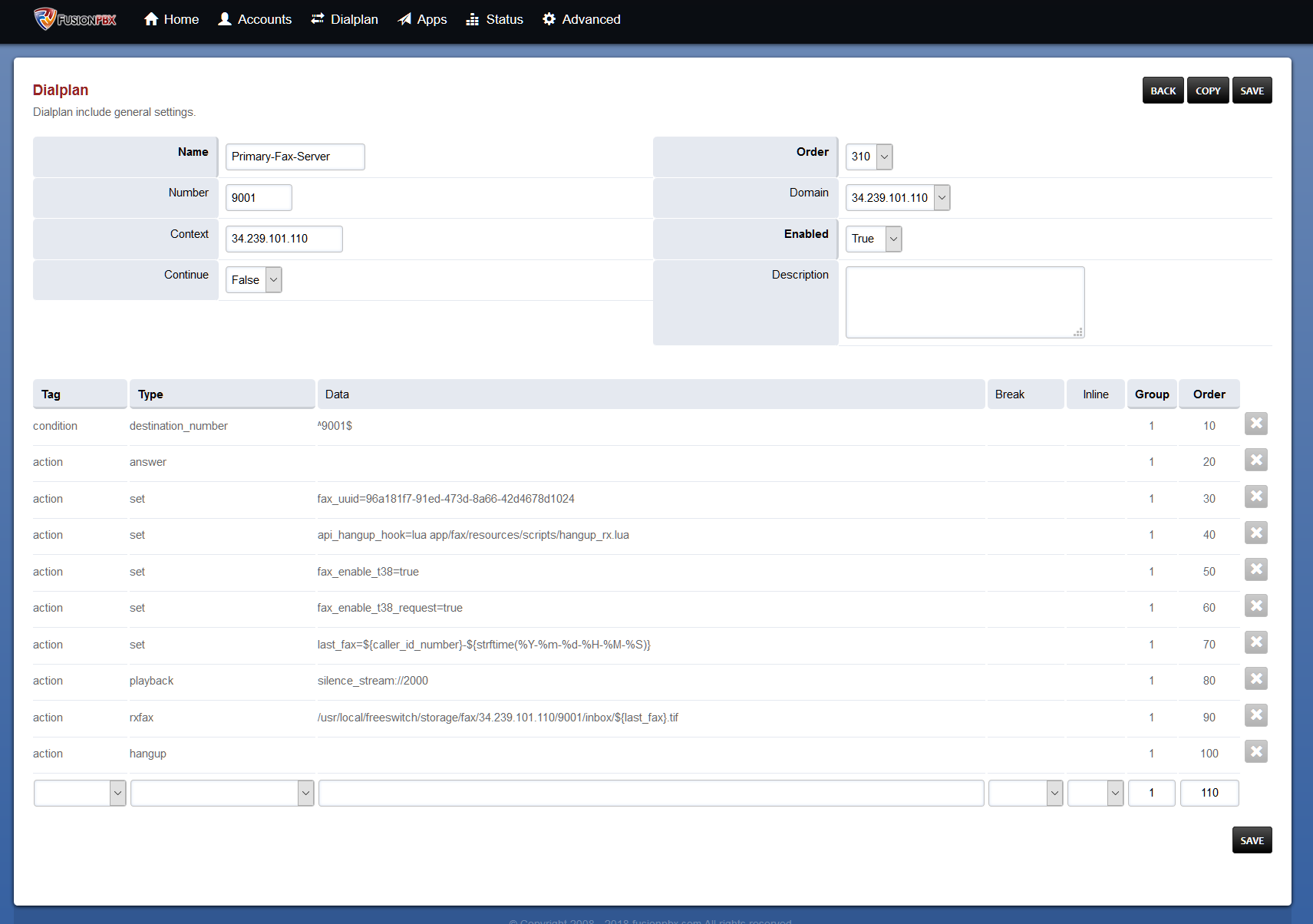

     Additionally, you'll need to make an adjustment in the Fax Server dialplan. Navigate to "Dialplan -> Dialplan Manager" and then select the associated dialplan. (Named according to the name you configured above.) Make the following adjustments:

     Configuration Option	Required Value
     fax_enable_t38_request:	True

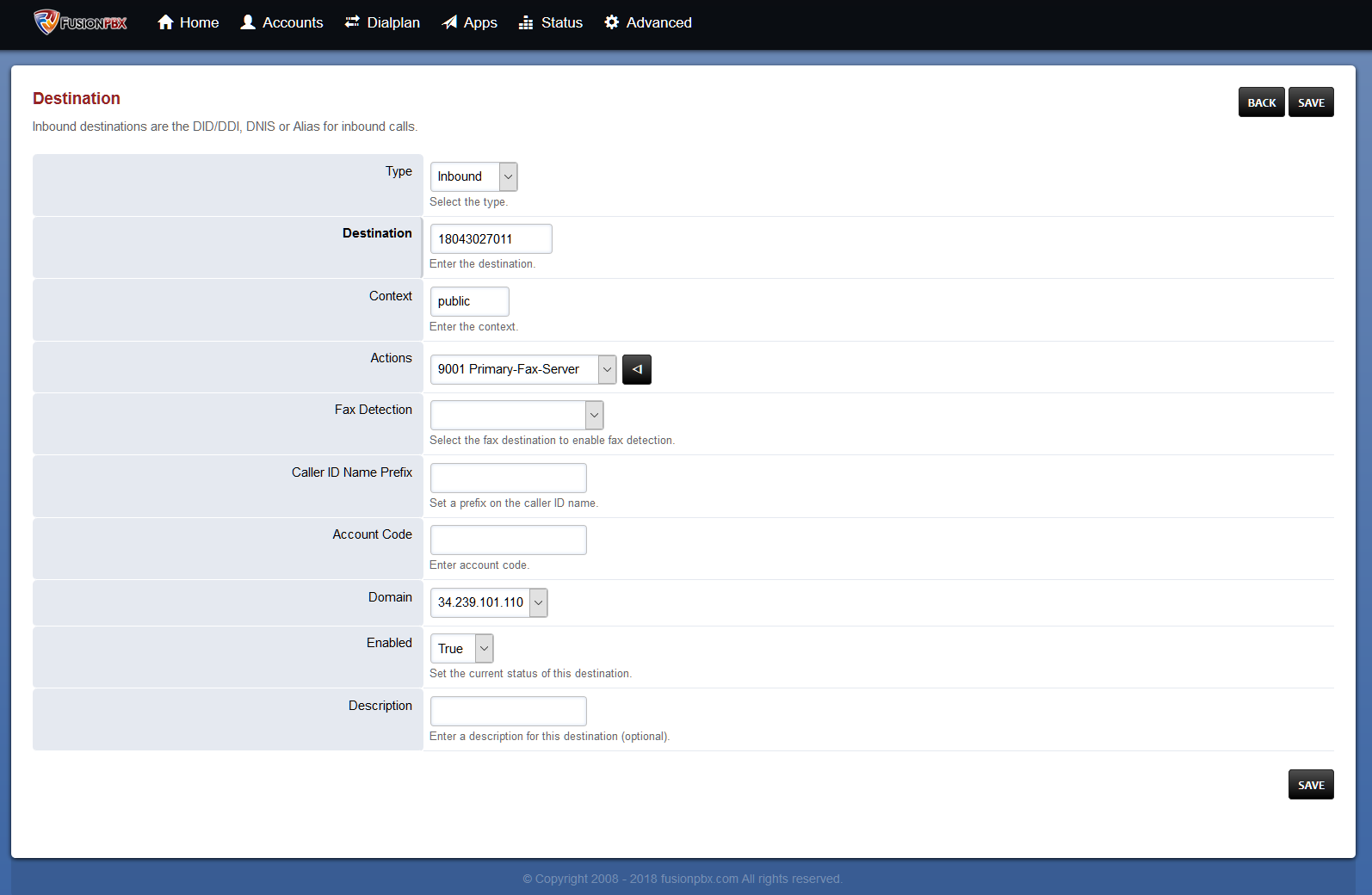

  2. Create a new "Destination" to automatically create an inbound route to your new Fax Server application. Navigate to: "Dialplan -> Destinations" and click a "+" symbol to create a new Destination (and inbound route).

     Configure the following settings when creating a new Destination:

     Configuration Option	Required Value
     Type:	Inbound
     Destination:	SIP_USERNAME/DID
     Action:	Set this to the Extension of the Fax Server



  3. Now we will need to add a few parameters to the Inbound Route to ensure that T.38 is accepted on all legs of the call. For each inbound route you've created, you'll need to add these parameters to ensure that it will function properly. Navigate to "Dialplan -> Inbound Routes" and select the Inbound route that was automatically created during step 4. You will need to adjust the "Order" field of the "Transfer" action to ensure that it is the last line in the dialplan. Add the following parameters to the dialplan, be sure to review the screenshot for more detail:

     Tag	Type	Data
     Action	Export	fax_enable_t38=true
     Action	Export	fax_enable_t38_request=true
     Action	Export	t38_passthru=true
     Action	Export	fax_use_ecm=true
     Action	Export	absolute_codec_string=PCMU



  4. Next, we'll configure our "Outbound Routes" so that you can send calls out via your T38Fax.com trunk. Using the top menu, navigate to "Dialplan -> Outbound Routes" and click the "+" symbol to create a new Outbound Route.

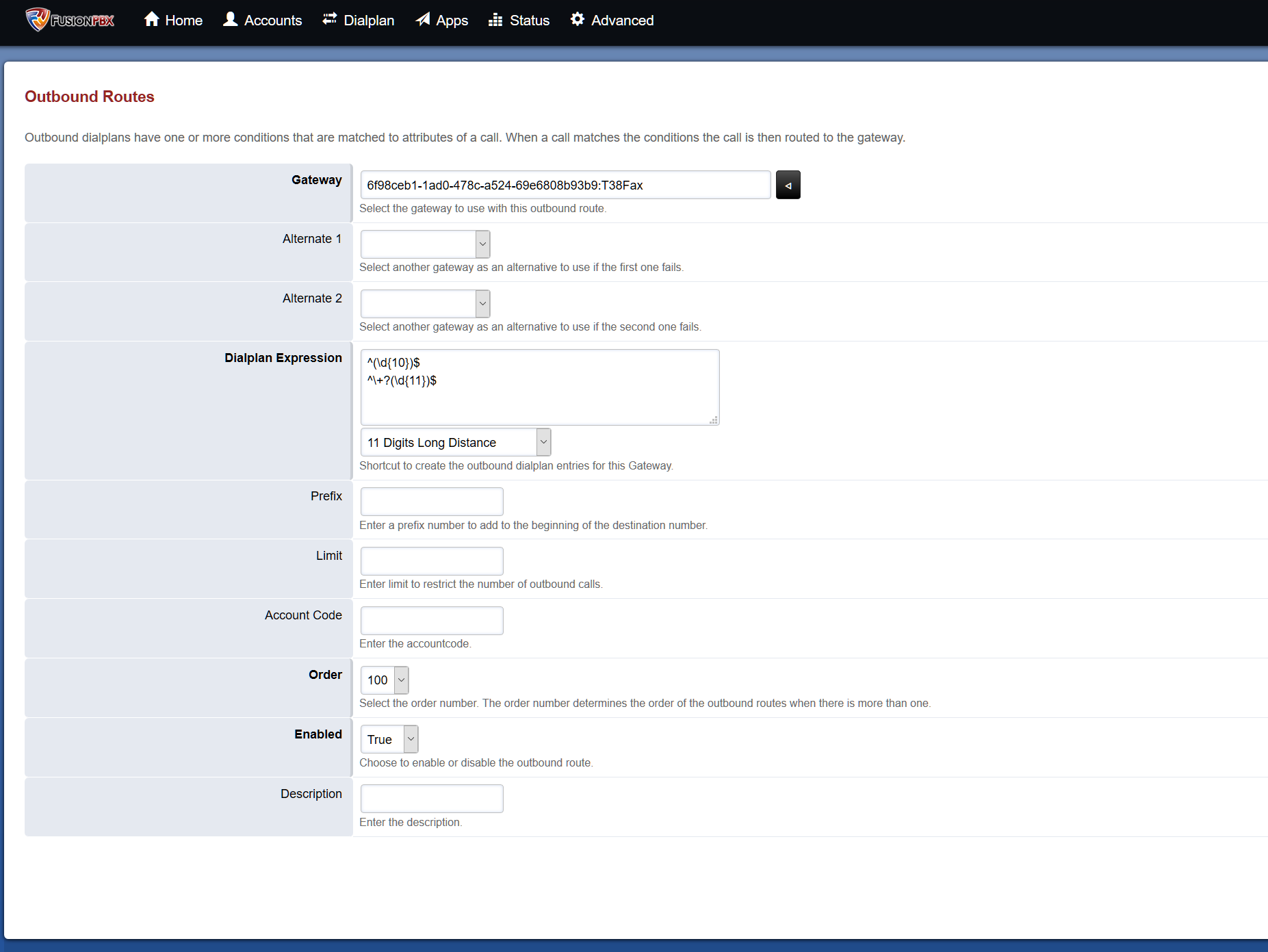

     Configure the following settings when creating your Outbound Routes:

     Configuration Option	Required Value
     Gateway:	Select "T38Fax"
     Dialplan Expression:	Select "10 Digit" & "11 Digit" dialing



     Optionally, you can simply copy & paste the following into the "Dialplan Expression" field:

     ^(\d{10})$
     ^\+?(\d{11})$

  5. We need to make some final adjustments to the outbound route diaplan(s) to ensure that ECM is enabled for Outbound calls from the fax server.

     Important Note:

     NOTE: This change is only required if you choose not to follow our "Advanced Fax Server Configuration" section of this guide. If you will be implementing the Advanced Configuration, skip this step.

     Navigate to "Dialplan -> Outbound Routes" and add the following definitions for each Outbound Route you created in the previous step:

     Add/Edit the following definitions to each Outbound Route:

     Tag	Type	Data
     Condition	${toll_allow}	^(t38fax)$
     Action	Bridge	{fax_use_ecm=on}sofia/gateway/GW/$1

     info

     Please Note:

     The directive "{fax_use_ecm=on}" should be prepended to the pre-existing string. Be sure "GW" is properly configured for your specific system.

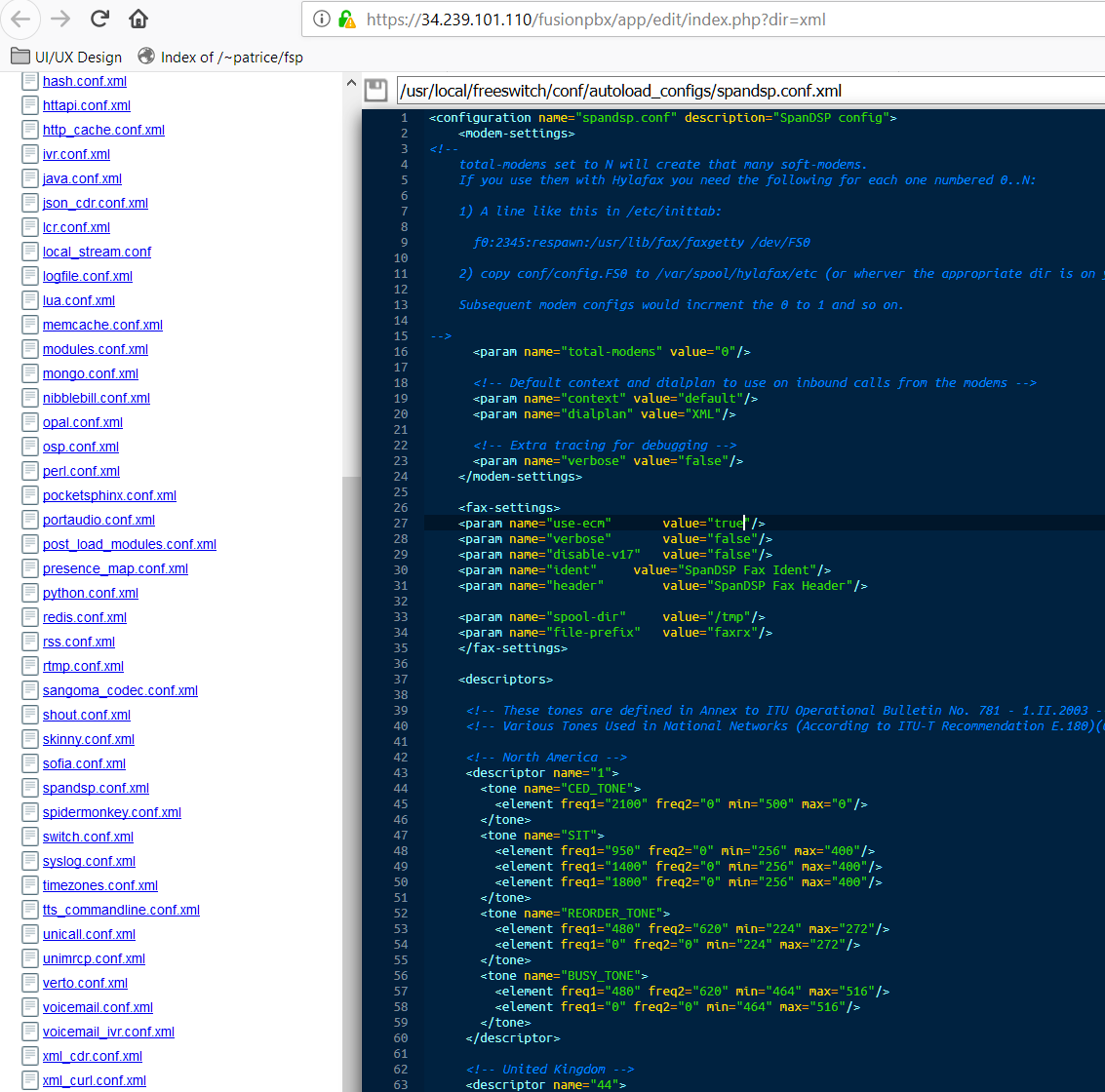

  6. We'll need to make a small adjustment to the XML configuration file for spandsp to ensure that ECM is utilized. Navigate to "Advanced -> XML Editor" and open the /autoload_configs/spandsp.conf.xml file. Change the "use-ecm" parameter to "True" your fax settings should look like this:



     Be sure to "Save" your XML config file by clicking the Floppy Disk icon in the upper left of the editor's window

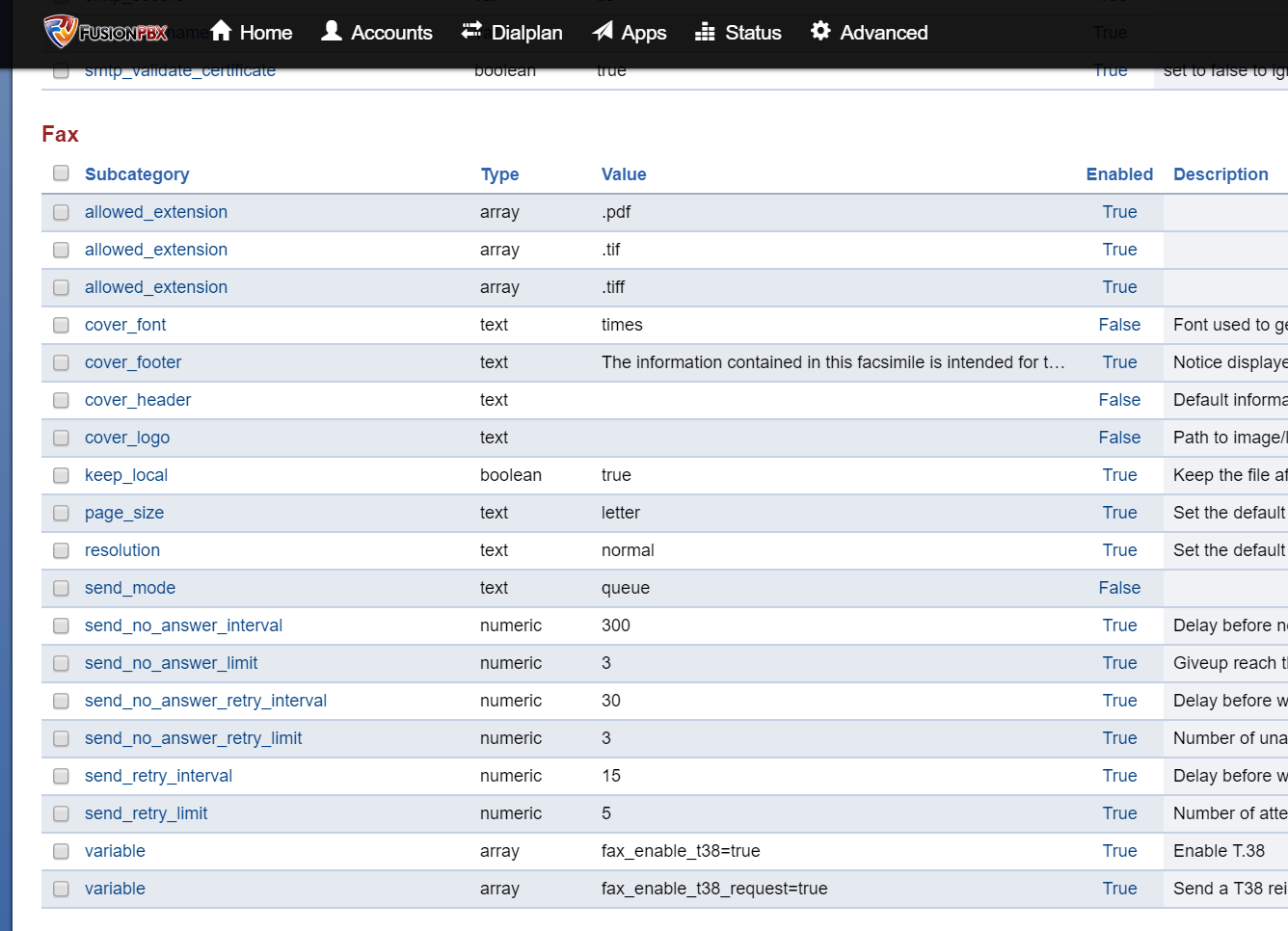

  7. Switch back to the FusionPBX GUI (close the XML Editor) and make the following adjustment under "Default Settings" to enable T.38 reINVITE requests:

     Configuration Option	Required Value
     fax_enable_t38_request:	true



  8. From the linux command line of the system where FusionPBX is installed, you'll need to install the following in order to convert PDF to TIFF files and other associated tasks.

     # Run as root:
     yum -y install libtiff-devel ghostscript libjpeg

     Be sure to reload mod_spandsp from fs_cli:

     fs_cli -x "reload mod_spandsp"

     At this time, you should be able to successfully send a fax using T.38 Passthrough to your ATA. Feel free to test by sending a single page fax to: 215-825-8792, and the system will fax your transmission back to you once it's successfully received it.
